Re-Pack Side Panel Labeler (Without Conveyor)

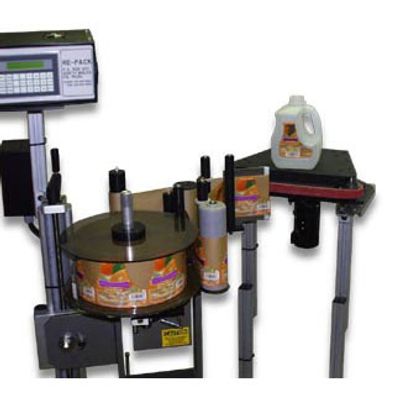

Open Framed Panel Labeler without Conveyor
Our Open Framed Re-Pack Panel Labeler System is designed to integrate with a customer’s existing conveyor. The labeling head and drive belt assemblies are mounted on an adjustable cradle support frame. The product is transported to the labeling head by the customer’s conveyor.The product is then driven passed the applicator by the drive belt assembly. The support frame is adjustable, allowing our machine to integrate with virtually any conveyor.

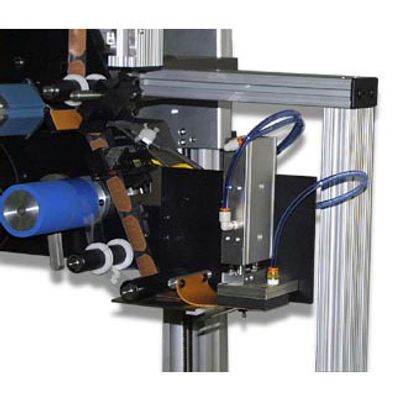

Re-Pack Syncro Series Labeling Head
Tamp Apply, Blow On and Tamp/Blow Fixed-Speed Applicators
By linking a fixed speed stepping motor with our analog controls, we are able to provide an applicator that is versatile, accurate and price competitive. The Re-Pack Syncro Series labeling heads are available in Blow-on style, Tamp Apply and Tamp / Blow application modules. A wide variety of options are available, such as alarm packages and custom application devices.

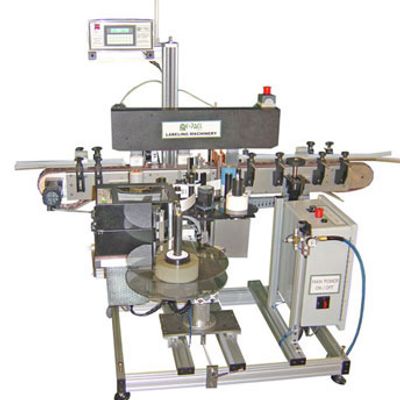

Re-Pack Three & Four Side Panel Wrap Labeling System
Line of labeling systems specifically designed for square and rectangular containers
The Re-Pack three and four panel label applications on square and rectangular containers have become common place. So much so, we have designed a line of labeling systems specifically for these applications. We even manufacture a machine that can quickly be changed over from 3 panel to single panel or wrap label application. We would enjoy the opportunity to work with you on your next multi-panel label application.

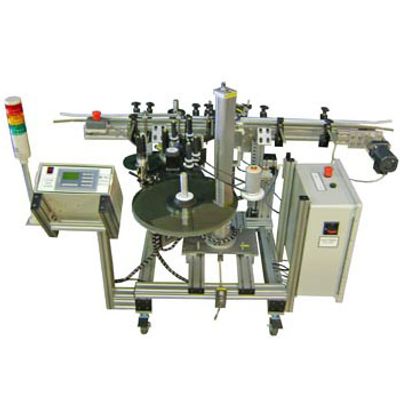

Re-Pack Three Roller Indexing Labeling System
Designed to orient the product and apply a wrap around label registered to this orientation point
The Re-Pack Three-Roller Wrap System is designed to orient the product and apply a wrap around label registered to this orientation point. The product will be placed or transferred onto the system’s conveyor and spaced by an infeed gating system. Once spaced, the products will travel to the label application area. A sensor will detect the product, causing the back mounted rear rollers to extend, trapping the product between the two rear rollers and the front application roller. This will form a three-roller wrap application. While the product is rotating, an inspection camera will detect the desired location in the product and trigger the label applicator to dispense a label. Once the label has been applied the rear roller will retract allowing the product to exit.

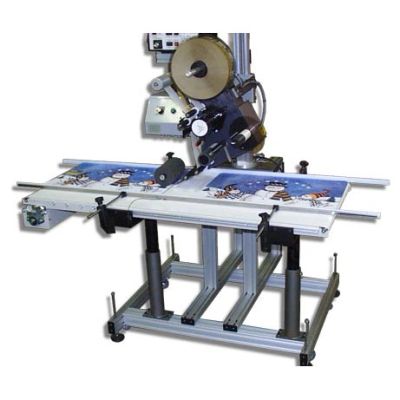

Re-Pack Top Panel Labeling System
Automatic Labeling System
Our Top Panel Labeling System is designed to decorate a wide variety of products. This equipment is normally supplied with a high grip textured belt conveyor that is offered in many different widths and lengths. For special applications, a cleated conveyor is also available. Either an apply only or print and apply applicator may be integrated with the conveyor. Please contact us for more details and available options.

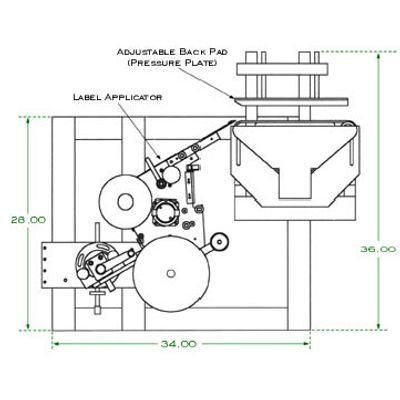

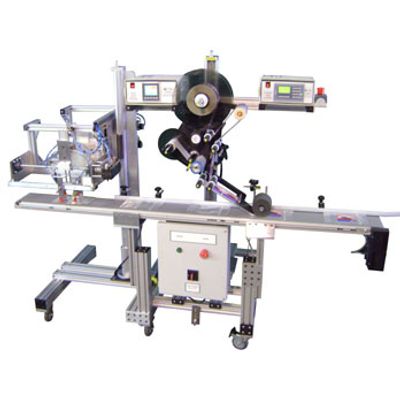

Re-Pack Top Panel Labeling System With Bag Feeding Device
Pick & place feeder, conveyor, series 4 stepper driven labeling head
Our Re-Pack Top Panel Labeling System is designed to decorate or identify a wide variety of products. Any product that requires decorative label application to its top panel or product identification on its top can be labeled on this system.
This version of the Top Panel Labeling System is supplied with a specially designed feeder for stacked, flat bags. This unique bag feeding device insures accurately positioned, single feeds of flat bags every time. The system is normally supplied with a high grip textured belt conveyor that is offered in many different widths and lengths. Such belting allows for the accurate transport of the bag, once fed, to the labeling position without the use of more expensive product guiding features. For special applications, a cleated conveyor for positive product control is also available if needed.
Either an apply-only applicator or a print and apply applicator, for partial or full label printing immediately prior to label application, can be integrated with the system. Virtually every Re-Pack Labeling Head can be integrated with this system offering an almost unlimited selection of label sizes and types that can be addressed. Please contact us for more details and available options.
Re-Pack Wrap Labeler (Without Conveyor)
Applicator and wrap station designed to integrate with the customer''s existing conveyor
This labeling system is capable of wrapping pressure sensitive labels around various sized round products. The applicator and wrap station are mounted to an extruded aluminum base and designed to integrate with the customer’s existing conveyor. The line height of the applicator and wrap station is adjustable allowing simple installation into most production lines. The speed of the applicator and wrap station is also adjustable to meet production rate requirements.

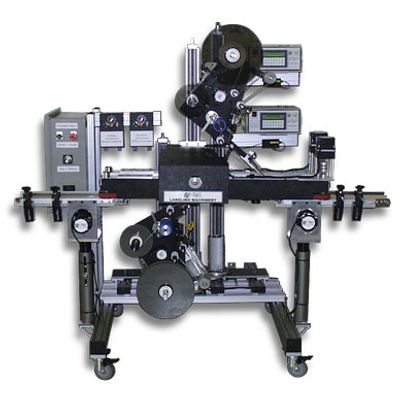

Re-Pack Top & Bottom Labeling System With Conveyors
Automatic Labeling System
Some labeling applications, such as the food industry, require the product to be transported on a belted conveyor and labeled on both the top and bottom panels. Top panel labels are quite often graphically appealing and for the purpose of product marketing or shelf display. Bottom panel labels are usually for the listing of nutritional ingredients or other required industry information.
In such applications two conveyors placed end to end, with a very small gap between the ends, are employed. The product is transported to the first conveyor where a labeling head is mounted over the top of the product path. Once the top label has been applied to the passing product, the bottom label can be fed by a labeler below the conveyors up through the small gap between the ends of the conveyors. As the container transitions from the first conveyor to the second (across the small open gap) it picks up the label being fed from below and the bottom label is applied. In this way two labels are applied without the need for a second full labeling operation as both labels are applied in a single product pass in a very short physical distance.
This engineering approach to dual panel labeling allows for the accurate dual panel labeling of high volume products at significant speed.
We also offer a complete line of semi-automatic top and bottom labelers for situations where the product volume does not require fully automated transport and label application to satisfy production. Our semi-automatic top and bottom labelers consist of a base and platform with labeling heads mounted above and below a product locating fixture. The product will be manually placed into the fixture and both applicators activated with a single switch. Once activated, tamp pads will extend placing the labels on the top and bottom of the product.

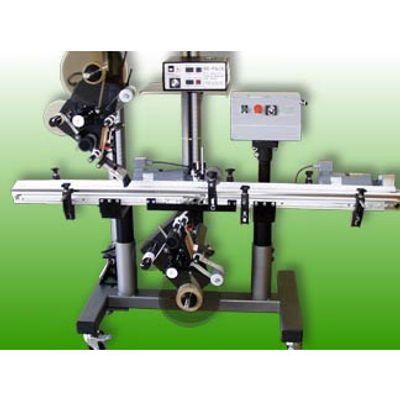

Re-Pack Top & Bottom Labeling System With Side Hugger Belts
Hugger belts capture the product from both sides, leaving the top and bottom of the container exposed for label application
Many small products are unstable and difficult to handle on standard conveyor systems. For this reason we offer our Dual Hugger Belt Top / Bottom Labeler. The hugger belts capture the product from both sides, leaving the top and bottom of the container exposed for label application. As the products are driven passed the label applicators, the labels are dispensed and applied to the container.
Our Semi Automatic top and bottom labelers consist of a base and platform with labeling heads mounted from the top and the bottom. The product will be inserted into a fixture and both applicators activated. Once activated, tamp pads will extend placing the labels on the top and bottom of the product.
Top and bottom conveyor systems. Some applications such as the food industry, require the product to be transported on a belted conveyor. The product is placed on the conveyor with a labeling head mounted over top. Once the top label has been applied, the label is fed over a small gap in between the conveyors. The bottom labeling head is placed underneath the conveyors, and applies the label up and onto the bottom of the product.
Dual hugger belt system. Many small products are too unstable to be transported and labeled on a conveyor. In this case, dual hugger belts will be used to secure the product from the sides. As the container is moved between the hugger belts, label applicators are placed over top and underneath applying the top and bottom labels.

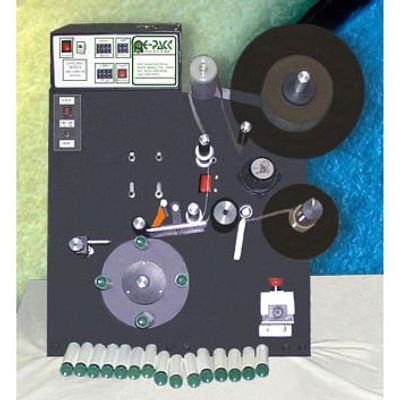

Re-Pack Robo Tube Table Top Labeling System
Semi-Automatic Labeling
The Re-Pack Robo Tube Labeling System is employed exclusively for the labeling of empty open bottom tubes. It is specifically designed to protect the empty tube from denting or distortion during the process of label application.
The label is applied in a semi-automatic fashion. The empty tube is placed (horizontally) onto a mandrel accurately sized to the inside diameter of the open ended tube. The mandrels are mounted on a starwheel that rotates to the labeling station.
Once at the labeling station, a sensor will detect the product and activate the label applicator. As the label is dispensed, the mandrel/tube combination will rotate at the same speed as the applicator is dispensing the label. This rotational motion of the mandrel and tube allows for the application of the the label. Once the label is fully applied the starwheel will then index again moving the labeled product from the labeling station to the tube removal position. While at the removal station, the tube will be manually removed from the mandrel so that the process can be repeated. A sensor at the removal station will not allow the system to cycle again until the labeled product has been removed thus it is not possible to have tubes labeled more than once.
This process continues each time a product is detected at the labeling station and the empty mandrel is sensed at the removal station.
Empty tubes are highly susceptible to denting and deforming if not handled carefully with proper interior support across the entire inner surface of the tube. The Robo Warp takes all of the handling problems of tubes into consideration and solves them simply. Call us to discuss your specific need and let us help you find the best solution for your empty tube labeling.
