Piezo Ink Jet Printers

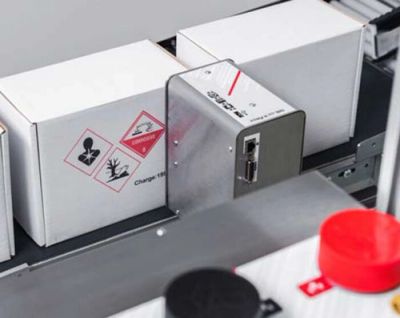

Coding & Marking made easy with the new FX ONE Standard printer

Print in high resolution directly onto any substrate on a production line to eliminate the need for costly pre-printed packaging or expensive labels. The FX ONE is a Plug & Play industrial inkjet printer designed for the most demanding applications

• The Foenix FX ONE is a real alternative to CIJ, TIJ printers and labelling machines.
• MOST ECONOMICAL per print industrial printer on the market for case coding.
• Print on boxes, cartons, trays, sacks, plastic, metal, extrusion and recycled materials.

Bold in design and with cutting edge innovation and high performance features, the Foenix range of FX ONE printers will always stand out on a production line and deliver the best user experience. The Standard printer is designed to replace TIJ, and the Remote version places itself as the real CIJ alternative with its motorized shutter.

• High Resolution Coding & Marking
  1 to 8 lines of print, with 2-18mm print height.
• PC Connectivity
  Via USB cable or Ethernet or factory network system for direct message creation.
• Graphics, Logos & Barcodes
  Easily import JPEG & BMP graphics using the Foenix FX Software.
• Simple Screen & Keyboard
  For local control of printer speed and direction, and message delay.
• Out of the Box Installation
  With minimal components for maximum reliability.
• 1D & 2D Barcodes
  High resolution printing of 1D and 2D barcodes (QR Codes) to include variable data.
• 2 Years Warranty
  Extend it for one, two or three more years.
• Touch Controller
  Simple interactive windows programming with Foenix FX Software. Reliable printing in one click.
• Networking
  Manage multiple printers from one place. Monitor progress, track faults and gain insights with print analytics.
• True Type Font & Unicode
  Enables message creation in any font and in any language.
• Large Oil and Solvent Based Ink Cartridges
  Low cost coding and clean inking system ideal for printing on to porous and non-porous surfaces.
• Multi Port Connection
  For encoders, external alarms and alternative product detection devices.
• Ink Saver Mode
  Reduce ink consumption by up to 75%.

• Prints in any orientation
• 1 to 8 lines of print
• 2mm- 18mm total print height
• High resolution peizo print head
• Prints text, graphics, logos and barcodes
• Prints time and multiple date formats
• Continuous repeat print capability
• 100m/min print speed (50m/min for barcode and 2mm text)
• Single start/stop print button
• Visual alarm indicator including ink low
• Message width, delay and print direction control
• Product detection photocell
• Weight 3.75 lbs. (1.7 Kg) (excluding ink cartridge and brackets)
• Size 9.53″ x 7″ x3.54″   (242 x 178 x 90mm)

• RS232 and RS485 for touch controller
• USB-A memory stick included
• USB-B for cable connection
• Ethernet (optional)
• Prints text, graphics, logos and barcodes
• I/O port for encoder, alarm beacon and external photocells

• Sealed replaceable ink cartridge (up to 15 million characters)
• Oil based inks for porous surfaces
• Solvent based inks for non-porous surfaces
• UV inks for instant LED curing
• Various colors

• 90-260 VAC to 24VDC power supply included

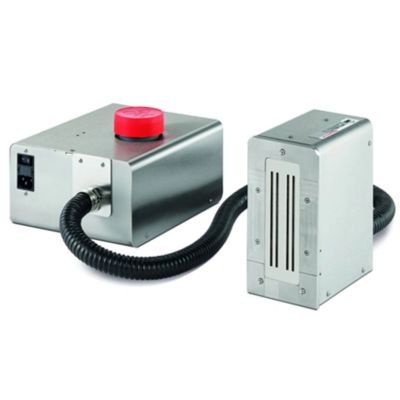

Integra Piezo Inkjet Coder for Large Print Areas on Corrugate or other Porous Materials.

Integra PP108 Performance Piezo Industrial Inkjet Coder: The INTEGRA PP108 is a revolutionary, standalone print system intended for large print areas on corrugate and other porous substrates. It leverages the SEIKO print head and a circulating print system. This principle prevents the accumulation of air in the nozzles and ensures a permanent, clean print image without line-outs due to dropping nozzles. Pump control and automatic adjustment of internal circulation pressure allows installation of the ink tank above, below or same level as the print head. The air in the ink supply and print head is automatically removed from the print system.

• Print height 4.25-inches
• Small fonts from 1mm and larger
• Prints horizontally or vertically down with no change to the ink system placement
• High resolution up to 360 dpi vertical
• Speeds up to 984 fpm at 180 dpi, or 492 fpm at 360 dpi
• Grayscale printing enabled
• Ink level sensing for proactive swapping
• System starts up in less than 1 minute
• System is shock resistant and not prone to deprime

Benefits: Relative to other piezo printers, INTEGRA PP108 offers a number of benefits that set it apart from the competition.

• Ease of start-up & venting of ink system
• High resolution linear & 2D barcodes
• Pigmented MOF (Mineral Oil Free) Ink
• No leaking or external ink bottles during operation
• Shock and deprime resistant
• Meets the demand for high running speeds
• Greater flexibility to install ink supply
• Competitive Total Cost of Ownership (TCO)

INTEGRA PP108 BICOLOR

The Markoprint Integra PP108 is now available in a bicolor version. It is the first high-resolution, two-color inkjet coder in the market for porous surfaces including corrugate shipping cases, lumber, and paper bags.

The system uses the same 4.25-inch printhead as the original Integra PP108 monocolor. On the bicolor unit, each of the two nozzle rows print a different color - black and red - with additional colors coming in the future.

Integra PP108 Bicolor has two 700ml ink tanks where the mineral oil free inks are filled in order to feed the printhead. Inks are kept under pressure to prevent ink spills and to enhance useability.
