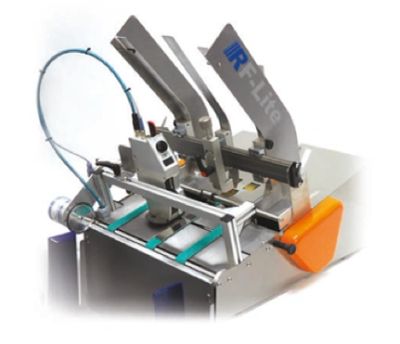

Rotech RF Lite: Vacuum transport system for many print systems
Fitted with clean thermal inkjet technology, the RF-Lite is ideal for clear, concise date or batch coding onto sleeves and cartons. The RF-Lite can consistently print codes onto all shapes and sizes of sleeve, ranging from 30 x 70mm to 300 x 200mm. It only takes a few seconds to swap between sizes. With its comparatively low upfront cost, the RF-Lite is an ideal entry-level solution for companies wanting to automate their offline date coding.
The RF-Lite is a simple, low-cost offline coding system; ideal for companies looking to automate their date marking process for the first time. It also suits larger operators who are looking to install dedicated marking systems on multiple production lines.
Rotech RF Auto: Heavy-duty system for high-speed coding of flat-form packaging
With its patented auto-gating technology, the RF Auto effortlessly handles products of varying thicknesses, reducing set-up time and waste. The flexible system can seamlessly integrate with various coding and labelling technologies, making it the perfect solution for accurately and reliably coding a variety of packaging types, from sleeves and skillets to bags and cartons.
For optimal ease in adjusting settings and parameters, the RF Auto features an intuitive PLC with built-in HMI display. This ensures efficiency for operators when they need to run multiple product types.
Cost-effective & compact. Fast and Accurate.
- Designed and built for production volumes of up to 25,000 products per day
- Built with premium materials and components designed to last
- Pair with thermal inkjet technology for a maintenance-free and robust coding solution
- Can handle a wide range of packaging types, including flexible packaging and those with variable thickness
- High throughput rates of up to 60m/min
- Quick set-up for varying production runs with our patented, in-feed hoppers
- Vacuum conveyor allows for accurate, quality coding and marking at very high speeds
- Integrate with a thermal inkjet (TIJ) printer to ensure a crisp, clear print without mess or odor
Rotech RF 1: Vacuum transport system using either thermal ink, jet, thermal transfer , hot stamp or
The Rotech RF1 is a range of high performance, high volume, offline overprinting systems that use 3 forms of established feeding system technology where the products are fed stack to stack.
Accufast P4 Thermal Ink Jet Printer, with Feeding and Handling System
The Accufast P4 Thermal Ink Jet Printer is a fully integrated feeding and handling system for flat cartons and cards that is supplied with one “Split Print Imager”. Each section of the Split Imager is capable of holding two print cartridges (each cartridge with a 1/2” print height) – for a total of 1” print width from each “Split”. Between the two “Split” imagers the total print height is 2”. Each section of the Imager can be precisely positioned along a rail for exact print positioning. This print system can supplied with a selection of feeding devices to suit the size and characteristics of the goods to be printed. If needed a sliding stand can also be provided for easy changeover from one feeder to another.
The system takes a single item to be printed from the bottom of a controlled stack, feeds that single item into the print portion of the system where the inkjet cartridges can deposit the image, text, bar codes or other print images that have been design on the free software. Once printed, each item can be dropped into a simple collection device or placed onto an extended shingling conveyor for easy further handling without print interruption.
The P-4 is capable of ultra-high print speeds and data handling that allow for individualized printing of ever changing information without print speed sacrifice. Print resolutions up to 900 dots per inch are easily selectable in the programming software in order to give the best print images possible on any material.
A wide range of inkjet inks in simple to exchange cartridges are available to suit virtually any print need or material including UV light curable inks for superior abrasion resistance and totally solvent free printing.
Printing a simple lot code and expiration date on cartons and cards is a perfect task for the P-4 as is the adding of full ingredient information over a lager print area.
Feel free to challenge the P-4 to see if it can handle the task you face.
