Description
The S-6000 Plus can be used as a simple standalone, easy to program printer, or alternatively integrated into a full production network system. Ideal for quick and easy product and box coding.
The compact S-6000 Plus Standard is perfect for identifying cartons with printing up to 17mm high text and bar codes while the Duo allows for printing up to 34mm high characters. The 17mm high print heads are available with manual or motorized print head shutters.
The piezo technology in this on-line, high resolution ink jet printer gives unbelievable print quality for small or large characters, graphics and bar codes. The S-6000 Plus will print up to 17mm high (Standard) or 34mm high (Duo) and features multi-line coding. This compact self-contained printer offers easy message entry and editing using a full QWERTY keypad and color WYSIWYG screen. It also comes complete with software for networking and label creation through a PC.
The S-6000 Plus Inkjet Coder is simple, clean and easy to install and use for coding Lot, Batch Number or Expiration Date onto bottles, jars, cans and other containers– it uses an ink cartridge system so there is no mess!
Benefits
Improved Product Image
High resolution printing combined with the ability to import your own font styles and graphics will enhance your product image. Printing directly onto your cartons, sacks, trays and other porous surfaces will save time and money, eliminating costly pre-printing or expensive labels
Low Cost Maintenance
The S-Series has been designed with minimal components to give maximum reliability. No pumps, no valves, no compressed air and the use of just a single PCB means low maintenance.
Reduced Print Costs
Printing with micro ink droplets and a sealed ink cartridge gives low cost per print with no ink wastage. Additional cost savings can be obtained using the economy-print type font.
Operator Confidence
The S-Series have the option to select from three different levels of message programming and editing, from very easy and basic to multifunctional programming.
Features
- S-6000 Plus Standard – 17mm

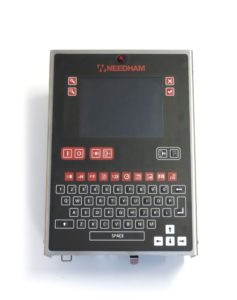

S-6000 Plus Standard
- Perfect for cartons, printing up to 17mm text and bar codes.
- Easy printer to set up with print head fitted internally with ink cartridge.
- Uses only oil based ink for absorbent surfaces.
- S-6000 Plus Duo – 34mm
- Perfect for cartons, printing up to 34 mm text and bar codes.
- Uses only oil based ink for absorbent surfaces.
- Will print up to 34mm print height (2 x 17mm)
- Encoder required to stitch print heads if character height is either over 17mm or across bothheads. (Encoder and output port included in price)
- Flatbed conveyor needed for best quality printing.
Specifications
- S-6000 Plus Standard and Duo
- 180dpi Print Resolution
- Standard Mounting Brackets

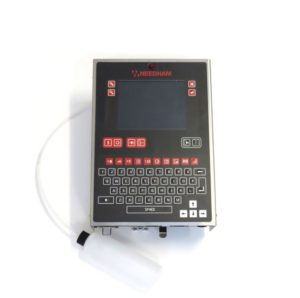

S-6000 Plus Duo
- Integrated Photocell
- 1 black 110ml cartridge, cleaner cartridge, spray cleaner
- 2 x interface ports RS232 + RS485
- Optional 7-way round sockets (F) -3 max
- Optional Ethernet connection
The S-6000 Plus, is an efficient, low cost alternative to expensive, complex continuous inkjet systems (CIJ’s) that traditionally use dangerous, unpleasant, odorous chemicals. Its simple cartridge loaded, odor free, alcohol based ink is clean and easy to use without any chance of spill or mess.
The system is easy to program from its fully integrated QWERTY keypad and full color WYSIWYG screen, or it can be controlled and programmed remotely from a centralized computer system, as full computer connectivity is a standard feature of the system.
The new standard motorized printhead cover allows the S-6000 Plus to remain ready to print even when line stops are for extended lengths of time. In some environments the printhead will remain ready to print for up to 6 hours of line stoppage without any additional preparation. For system operators this means that once set up at the beginning of a shift, the S-6000 Plus will be ready to print after coffee breaks, lunch breaks, extended line stops or product changeover.
Each system is provided complete, ready to run with software, ink cartridge and mounting bracket. Just plug it in, enter your message and start printing. All of these advantages, as well as exceptional quality print are available at a fraction of the cost of previously available inkjet systems. Why use a complex, difficult to program, chemically unfriendly system that might cost up to twice as much as S-6000 Plus when you can have the advantage of cleanliness, ease of use and low operating costs right at your fingertips!
S-6000 Printer Dimensions
