Description

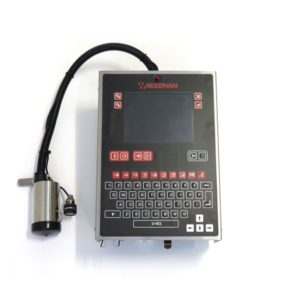

The S-6000R Plus can be used as a simple standalone, easy to program printer, or alternatively integrated into a full production network system. Ideal for quick and easy product and box coding. The compact S-6000 Plus Remote has 17mm high print heads that are available with manual or motorized print head shutters. Print heads are mounted on a cable for extending into machines or hard to reach places.
Benefits
Improved Product Image
High resolution printing combined with the ability to import your own font styles and graphics will enhance your product image. Printing directly onto your cartons, sacks, trays and other porous surfaces will save time and money, eliminating costly pre-printing or expensive labels
Low Cost Maintenance
The S-Series has been designed with minimal components to give maximum reliability. No pumps, no valves, no compressed air and the use of just a single PCB means low maintenance.
Reduced Print Costs
Printing with micro ink droplets and a sealed ink cartridge gives low cost per print with no ink wastage. Additional cost savings can be obtained using the economy-print type font.
Operator Confidence
The S-Series have the option to select from three different levels of message programming and editing, from very easy and basic to multifunctional programming.
Features
- S-6000R Plus Remote – Manual
- Ideal for product coding and best before dates, with a manual 17mm print head.
- For use with oil ink for absorbent surfaces or solvent ink for non absorbent surfaces.
S-6000R Plus Remote Manual
- Solvent ink use will require head to be sprayed after production breaks.
- Print head can be positioned low down on product.
- Print head can print on top of product or on an angled side.
- S-6000R Plus Remote – Motorized
- Ideal for product coding and best before dates, with a 17mm print head.
- For use with oil or solvent ink.
- Motorized Print head shutter allows for continued printing after production breaks without operator intervention.
- Motorized Print head shutter system is ideal in dusty environments as its closing can be time controlled and opened with a product sensor.
- Print head can be positioned low down on product.
- Print head can print on top of product or on angled side.
- Motorized shutter is ideal for fully automated continuous printing with minimal operator intervention.
Specifications
- S-6000R Plus Remote (Manual and Motorized)
- 17mm Manual Print Head
- 180dpi Print Resolution
- 500mm Conduit
- Second Shutter Photocell (S-6000R Plus Remote – Motorized only)
- Standard Mounting Bracket
- 1 black 110ml cartridge, cleaner cartridge, spray cleaner
- 2 x interface ports RS232 + RS485
- Optional 7-way round sockets (F) -3 max
- Optional Ethernet connection
S-6000 Printer Dimensions
