S-1000

The S-1000 is a modular inkjet system allows you to connect up to four independent 17mm high print heads to be integrated with one controller to suit your application. The system can be provided with the print head in the casing, with it mounted remotely or a combination of both. The control box can be mounted up to 10 meters from the print heads.

Description

The new Needham S-Series range of printers now offer unbelievable print quality in a fully featured compact printer. The S-1000 is a modular inkjet system allows you to connect up to four independent 17mm high print heads to be integrated with one controller to suit your application. The system can be provided with the print head in the casing, with it mounted remotely or a combination of both. The control box can be mounted up to 10 meters from the print heads.

Benefits

Improved Product Image
High resolution printing combined with the ability to import your own font styles and graphics will enhance your product image. Printing directly onto your cartons, sacks, trays and other porous surfaces will save time and money, eliminating costly pre-printing or expensive labels

Low Cost Maintenance
The S-Series has been designed with minimal components to give maximum reliability. No pumps, no valves, no compressed air and the use of just a single PCB means low maintenance.

Reduced Print Costs
Printing with micro ink droplets and a sealed ink cartridge gives low cost per print with no ink wastage. Additional cost savings can be obtained using the economy-print type font.

Operator Confidence
The S-Series have the option to select from three different levels of message programming and editing, from very easy and basic to multifunctional programming.

Features and Specs

  • S-1000 Controller

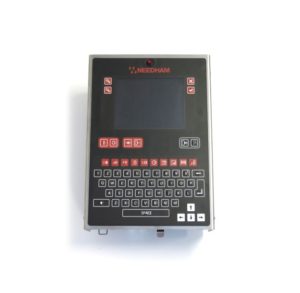

    S-1000 Controller

    • Controller has all the operational and editing features of a 6000Plus.
    • Can be sited up to 10 meters from the individual S-1000 print heads.
    • Ideal use when controller access needs to be outside machine guards.
    • Ideal when print heads are in inaccessible position.
    • Photocell input for product detect and motorised shutter can be connected to either controller or any S-1000 Printer.
    • Controls up to 4 x 1000 print heads
    • 2 x interface ports RS232 + RS485
    • Optional 7-way round sockets (F) – 3 max
    • Optional Ethernet connection
    • Mounting bracket
  • S-1000 Printer – Remote, Manual and Motorized
    • For use with oil or solvent based ink.
    • Allows remote manual or motorized print head & ink supply to be located separately.
    • Full connectivity between print head and controller by single 25 way cable (including photocell and low ink signals.)
    • 10M Max print head to controller.
    • Product detect photocell can be connected to either the controller or to one S-1000 (only one photocell required per system.)
    • 17mm manual or motorized print head
    • 500mm conduit

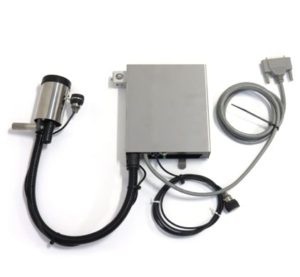

      S-1000 Printer

    • 110ml cartridge
    • Connection for S-1000 controller
    • Connection for optional photocell
    • Standard mounting brackets
    • 2m controller cable (more available)
    • Electronic shutter advance (motorized model only)

There are three different designs of S-1000 print heads and each can print up to 17mm of print height with up to 8 text lines, bar codes, graphics and 2D data matrix codes. Different inks enable printing onto non-porous materials (plastic, glass, metal) or porous surfaces (cardboard, wood, gypsum).

Ideal for printing in confined spaces and restricted positions
The various S-1000 print heads are small and each contains its own ink cartridge. They can be mounted in highly inaccessible positions or inside safety cages if necessary, yet still have the S-1000 controller placed close to the operator.

Total control for repeat printing across a web of material
Up to four S-1000 printers can be mounted across a web to print identical or different messages. The S-1000 controller mounted remotely can be connected to an encoder or any type of device for print activation.

Print both sides of your product but only use one controller
Whether you are printing two sides of a box or both sides of a larger product, having a single controller simplifies the calling up of messages by the operator.

Easy to use
A large color graphic screen and WYSIWYG display combined with pictorial action keys makes message editing and programming really easy.

High resolution printing
The same proven technology from the successful S-6000Plus printers is used in the S-1000 printers to give a very high resolution print quality.

System integration
An S-1000 print system can either be programmed at the controller or networked to a PC or factory network for full integration.

Sealed ink cartridge in each 1000 printer
A replaceable ink cartridge in each print head maintains a clean and efficient ink system free from contamination.
